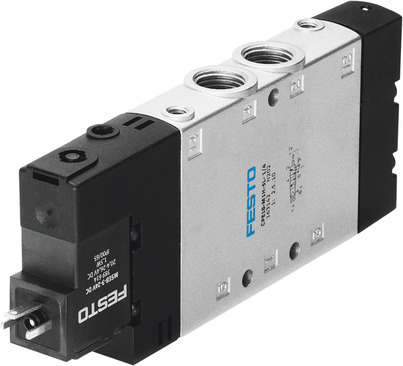

Air solenoid valve CPE18-M1H-5L-1/4 163142
Advantages
Performance-optimised sizes:
The solenoid valves CPE, Compact
Performance are distinguished by
their minimal width and low power
consumption at high flow rates.
They can be mounted directly on site:
– On the cylinder
– On moving system components
– Flexible installation through
individual mounting
Short tubing lengths requiring
minimal air volume:
Short switching times
Short response times
Optimised installations:
Shorter machine cycles
Larger quantities
Lower power consumption
Convenient manual override
CPE10, CPE14 and CPE18:
Simple manifold structure consisting
of fixed-grid manifold blocks made
from stable aluminium with 2 to 10
valve positions or modular manifold
blocks made from durable plastic.
The connecting cables NEBV for sizes
CPE10 and CPE14 feature integrated
current reduction.
All CPE valves therefore have a duty
cycle of 100%.
